Overview:

The TX7004 Fire Alarm System Control Panel comprise of a range of analogue addressable,microprocessor based fire alarm control equipment to offer flexibility in both design and operation. The System is modular concept for easy tailoring of system design, to meet the full requirements of the project. The TX7004 Intelligent Fire Alarm Control Panel is designed and manufactured to meet the requirement of BS EN54 Part 2&4. The TX7004 is designed to provide early warning fire detection, to quickly identify the location of fire and provide user definable text informing the occupants of the building of potential smoke spread. Simultaneously, the

TX7004 will alert and evacuate the occupants, and control all necessary auxiliary command functions such as elevator control, air handling shut down, gas shut off &damper control, as per the cause and effects requirements configured though Command Builder Set-up.

Commissioning Advantage

1, Auto Enrolling of Devices

2, Loop Mapping with color coding status.

3, Monitor device mismatch and dual address conflict

4, Command Builder to create requirements for fire event scenario.

5, With Loop protection against power surge.

6, 0ne-man test with On/Off sounder

7, Programming Protection

System Capacity

1, Support 254 Devices /one loop(1,524 ideal)

2, Network up to 512 Nodes

3, Zones up to 3000

4, Groups up to 3000

5, Memory [Non-Volatile] 1000 Fire events, 10,000 General events

Feature and Benefits

1.Certified EN54-2:1997 +A1:2006,

EN54- 4:1997 + A1:2002 + A2:2006

2.LPCB Approved

3.Using advance microprocessor technology with Large memory capacity

4.Enhance user interface combining LCD

5.Touch screen and keypad access

6.Support real time visual algorithm

7.Enhance false alarm prevention

8.Keypad and PC programming

9.Built-in Multiple interface protocol

10.such as USB/Ethernet/CanBus/ Serial/RS485 (Available only in TX7004/4 Panel)

11.Support Loop Powered devices for extra saving on cable cost

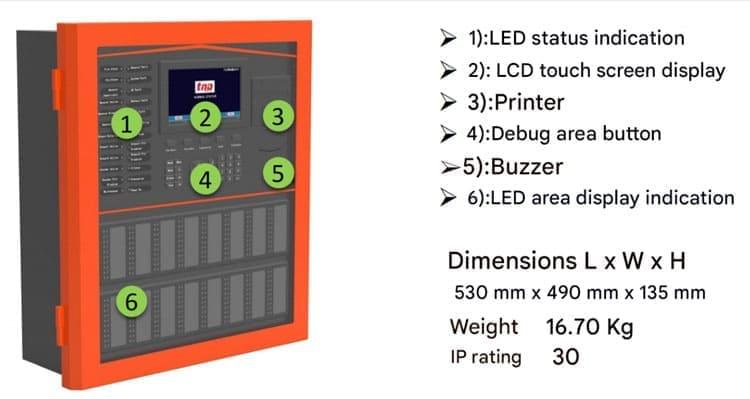

12.Built-In Printer and 160 LED Zones Indicators
