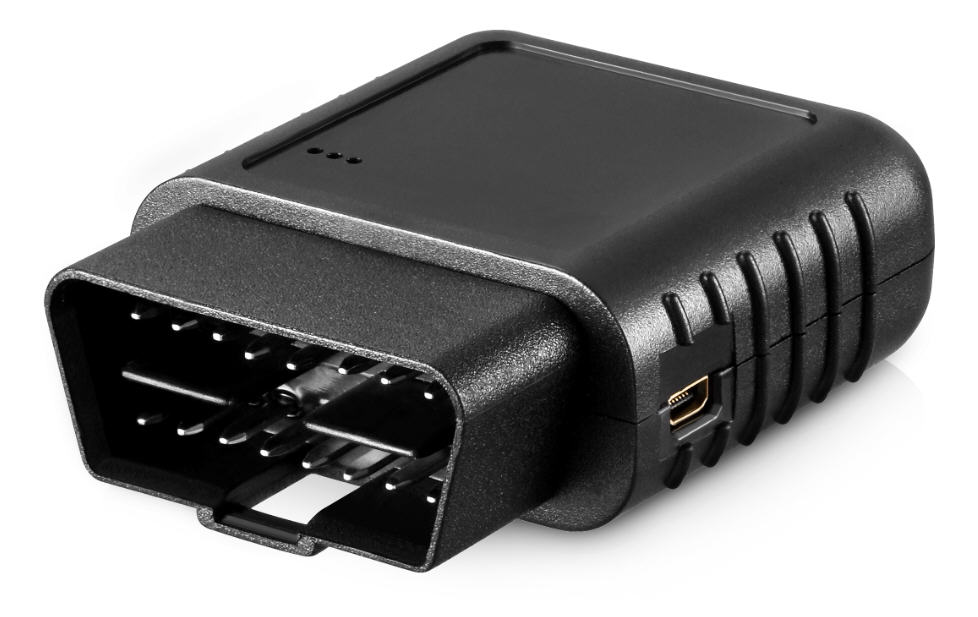

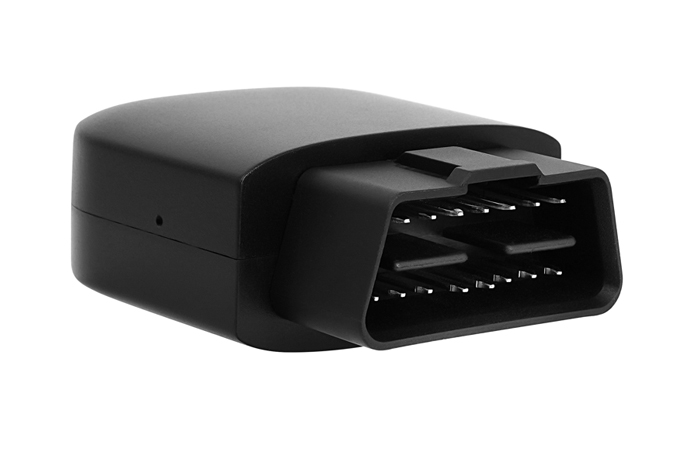

4G Remote Diagnostic OBD Tracker HS-6000G
2018-7-11 17:24:0 From:http://www.huashengtelematics.com/ Author:yaozhida
Description:
HS-6000G is a full-system remote diagnostic OBD tracker support all vehicle types (passenger car, commercial vehicle/machinery, electric vehicle). It can read odometer mileage & fuel level from private protocol, & other data from vehicle ECU, like RPM, meter speed, fuel consumption, universal DTC code & others. It is as powerful as a professional diagnostic tablet, + remote operations, + fleet management. It makes all works have no-distance (diagnostics, data reading, debugging & upgrading). It is an ultimate product for fleet management & vehicle repair.
Key Features:
1. Network: 4G CAT 1, all bands.
2. Locating: GPS + BeiDou, support A-GPS (quick locating); Use all-direction GPS antenna.
3. Supported vehicle type: All types. Passenger car, commercial vehicle, electric vehicle. Automatically choosing vehicle type, compatibility update by Cloud-AI.
4. ECU communication: Support standard OBD II protocol (including gasoline vehicle OBD & diesel vehicle OBD), support private vehicle protocol, support remotely read/write ECU.
5. Diagnostic: Support full-system remote diagnostic of all vehicle types; Support electric car battery data reading; Support AI diagnostic & repair suggestions.
6. Driving behavior: Record driving behavior, including harsh acceleration, harsh deceleration, harsh turning, quickly/frequently change lane. Support driving behavior scoring.
7. Cell-phone car key: Extendable car-key control box, support cell-phone digital car key.
8. Real-time vehicle data: Read true Odometer mileage, fuel level; Read VIN, meter speed, RPM, battery voltage, fuel consumption, power consumption.
9. Fleet management: Support fleet management software.
10. Driver application: Support cell-phone APP, functions include: vehicle management, driving behavior analysis, intelligent self-inspection, digital car key, tracking records, remote diagnostic.
11. Car repair: Support all-system diagnostic, remote diagnostic, for all vehicle types.
12. Intelligent network: Support Cloud-Diagnostic Platform, provide standard SDK for 3rd party development, for extensive functions. Applicable scenarios include: travel, logistics, insurance, car/machine repair, finance, making all these as an integrated ecosystem.
13. 3rd party software: Open MQTT protocol for integration to 3rd party software platform.
Hardware Specifications:
No. | Item | Specifications | Remark |
1 | Working Voltage | DC9-36V | |
2 | Power Consumption | 110mA@12V / 55mA@24V | |
3 | Sleep Mode Power | 2mA@12V / 1mA@24V | |
4 | Locating Mode | BD+GPS | |
5 | Location Accuracy | <3M | |
6 | Network | 4G CAT1 | |
7 | Communication | TCP/MQTT | |
8 | Working Temperature | -30℃～+70℃ | |
9 | Storage Temperature | -40℃～+85℃ | |
10 | MCU | 32 bit ARM Cortex-M4F, Frequency: 240 MHz Build-in Hardware Encryption Algorithm, support DES/ 3DES、AES、RSA、ECC、SM1、SM2、SM3、SM4、SHA-n | |
11 | 4G Module | Quectel EG800AK: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/ B19/B20/B25/B26/B28/B66/B71; LTE-TDD: B34/B38/B39/B40/B41; | |
12 | Locating Module | Support BeiDou 2, BeiDou 3, Number 1-63 all satellites Support A-GNSS, GPS complex locating, support A-GPS, base station, WIFI locating Cold-start sensitivity: -148dBm Trace sensitivity: -162dBm Accuracy: 2.5 meters (CEP50) 1st locating time: 32 seconds Low power consumption: working mode 20mA@3.3V Navigation data format: NMEA 0813 | |
13 | GPS antenna | All-direction GPS antenna | |
14 | 5 CAN BUS Line | ISO 15765-4 CAN (11 bit ID, 250 kbaud) ISO 15765-4 CAN (11 bit ID, 500 kbaud) ISO 15765-4 CAN (29 bit ID, 250 kbaud) ISO 15765-4 CAN (29 bit ID, 500 kbaud) ISO 14229 (UDS) J1939 Compatible with ISO 11898 standard; Canbus port withstand voltage: ±70V; High Anti-Electromagnetic Interference; | PIN: CAN 6-14 CAN 1-9 CAN 8-12 CAN 3-11 CAN 12-13 |
15 | 1 K-LINE | ISO 9141-2 (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (fast init, 10.4 kbaud) | PIN: 7 |
16 | Serial FLASH | Extensive external FLASH, provide local extensive storage | |
17 | G-SENSOR | Vibration detection, Collision alarm, driving behavior analysis | |
18 | SIM Card | Support Micro SIM Card |
