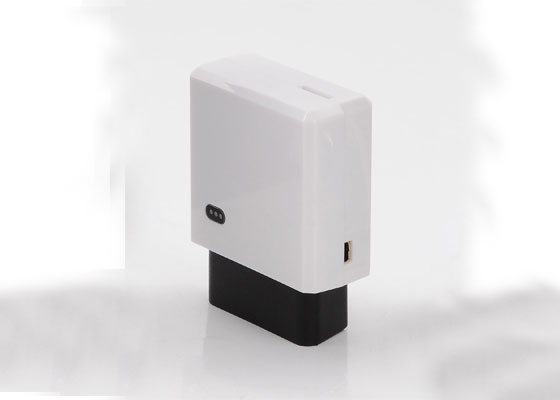

Scania Diagnostic Tool HS-600S
2018-7-11 17:25:12  From:http://www.huashengtelematics.com/ Author:yaozhida







Desctiption:

HS-600S supports Scania diagnostic system of all vehicles made by Scania after 2004, it reads diagnostic fault code from Scania truck/bus & upload to web platform for on-line diagnostics. You can manage the entire fleets for the diagnostic data.



HS-600S also read FMS data from Scania for fleet management, like fuel consumption, fuel level, cargo weight, Boost pressure & other data. All data are managed on-line, you can manage up to 200,000 vehicles in one web platform.



This device is currently used by all Scania trucks & buses across Iran, for improving fleet security & efficiency. for further detail of the project, please contact us. 3G version are also available.



Supported Systems:



APS – Air processing system;

BWS – Body work system;

BCS – Bus chassis system;

EBS – Brake management system;

EEC – Exhaust emission control system;

EMS – Engine management system;

COO – Coordinator;

ICL – Instrument cluster;

TCO – Tachograph system



ATA, WTA, CTS and AUS – Auxiliary heater system, Clock timer system, Radio;

OPC and RET – Gearbox management system;

SMS – Suspension management system;

RTI – Road traffic information;

TPM – Tyre Pressure Monitoring;

LDW – Lane Departure Warning;



Key Features:

● OBDII and CANBUS protocol, DC 12V and 24V;

● Plug and play, Small size, no installation cost;

● Collect fuel consumption, fuel level data;

● Very accurate mileage data (accuracy>99%);

● Collect DTC (Diagnostic Trouble Code) for remote diagnostic;

● Collect VIN, engine temperature;

● Internal GSM and GPS antennas;

● TCP and UDP protocol;

● Update firmware over the air;

● Illegal start-up, impact and rollover alarm;

● Detect harsh acceleration, braking, turn and high revolution;

● Driving behavior recording and analysis;

● Store break points data in non-volatile memory;

● Track on google map and other maps;

● Android, iOS APP & telematics software free for ever;

● Auto sleep mode to save automotive power;

● Wide working temperature range: -30 to +80.



Specifications:

GPS Specifications

GPS Module

U-blox NEO-7

Channel

50 pararrel channels

Position Accuracy

≤ 2.5m

Speed Accuracy

≤0.1m/s

Sensitivity

Tracking: -162dBm

Acquisition Time

Cold Start: 29s

Warm Start: 29s

Hot Start: 1s


Communication

2G GSM


MCU

NXP ARM 7


Interface

Mini USB Port

1

GPS Antenna

Internal

GSM Antenna

Internal

OBDII Connector

SAE J1962


Air Interface Protocol

Transmit Protocol

TCP, UDP, SMS


Protocol

ISO 15765-4 (CAN)

ISO 14230-4 (Keyword Protocol 2000)

ISO 9141-2 (Asian, European, Chrysler vehicles)

SAE J1850 VPW (GM vehicles)

SAE J1850 PWM (Ford vehicles)



ISO 15765

ISO 11898 (raw CAN)



Scania diagnostic protocol



SAE J1939 OBD protocol



Non-legislated OBD protocols (can be added according to customer's needs):

Single Wire CAN (SW-CAN) – GM proprietary network

Medium Speed CAN (MS-CAN) – Ford proprietary network




General Specifications

Sensor

Accelerator sensor and shock sensor

Case Material

ABS

Operation Voltage

DC 12 or 24V

Active current

70mA working mode

Operation Temperature

-30 to +80

Operating Humidity

5% to 95%, non-condensing

Dimension

62*48*20mm

Weight

60g



Applying Industry:
Scania diagnostic tool, Scania truck & bus remote diagnostics, Scania vehicle on-line diagnostics, OBD gps tracker, vehicle tracking device, obd dongle, car gps tracker, fleet management solution.





Download : HS-600G User Manual
