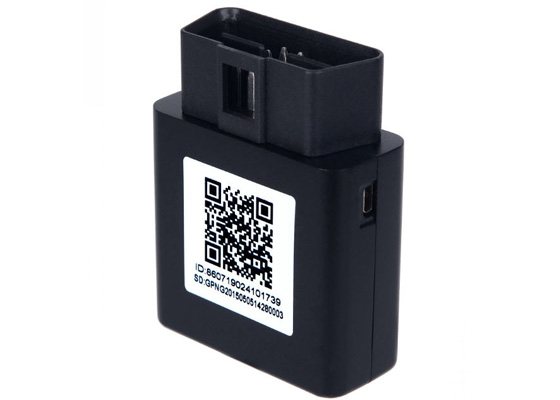

2G OBD GPS Tracker HS-600G
HS-600G is a plug & play OBD gps tracker that can install in cars & trucks, it reads data from car ECU, including mileage, fuel consumption, fuel level, DTC code, VIN & others. It also record driving behavior data & send to server for analysis. It is widely used in fleet management & insurance telematics.
Key features:
● OBDII and CANBUS protocol, DC 12V and 24V;
● Plug and play, Small size, no installation cost;
● Collect fuel consumption, fuel level data;
● Very accurate mileage data (accuracy>99%);
● Collect DTC (Diagnostic Trouble Code) for remote diagnostic;
● Collect VIN, engine temperature;
● Internal GSM and GPS antennas;
● TCP and UDP protocol;
● Update firmware over the air;
● Illegal start-up, impact and rollover alarm;
● Detect harsh acceleration, braking, turn and high revolution;
● Driving behavior recording and analysis;
● Store break points data in non-volatile memory;
● Track on google map and other maps;
● Android, iOS APP & telematics software free for ever;
● Auto sleep mode to save automotive power;
● Wide working temperature range: -30 to +80℃.
Specifications:
GPS Specifications | |
GPS Module | JRC GPS module (no drifting) |
Channel | 50 pararrel channels |
Position Accuracy | ≤ 2.5m |
Speed Accuracy | ≤0.1m/s |
Sensitivity | Tracking: -162dBm |
Acquisition Time | Cold Start: 29s Warm Start: 29s Hot Start: 1s |
Communication | GSM 850/900/1800/1900MHz |
MCU | |
Interface | |
Mini USB Port | 1 |
GPS Antenna | Internal |
GSM Antenna | Internal |
OBDII Connector | SAE J1962 |
Air Interface Protocol | |
Transmit Protocol | TCP, UDP, SMS |
Protocol | |
ISO 15765-4 (CAN) ISO 14230-4 (Keyword Protocol 2000） ISO 9141-2 (Asian, European, Chrysler vehicles) SAE J1850 VPW (GM vehicles) SAE J1850 PWM (Ford vehicles) ISO 15765 ISO 11898 (raw CAN) SAE J1939 OBD protocol Non-legislated OBD protocols (can be added according to customer's needs): Single Wire CAN (SW-CAN) – GM proprietary network Medium Speed CAN (MS-CAN) – Ford proprietary network | |
General Specifications | |
Sensor | Accelerator sensor and shock sensor |
Case Material | ABS |
Operation Voltage | DC 12 or 24V |
Active current | 70mA |
Operation Temperature | -30 to +80℃ |
Operating Humidity | 5% to 95%, non-condensing |
Dimension | 62*48*20mm |
Weight | 60g |
Applying Industry:
OBD gps tracker, gps vehicle tracking device, OBD dongle, car gps tracker, vehicle tracking system, fleet management solution.
OBD gps tracker, gps vehicle tracking device, OBD dongle, car gps tracker, vehicle tracking system, fleet management solution.
Download : HS-600G User Manual
